Accessories Barrier Gate

ANPR Camera: 4MP, 2688 × 1520, CMOS,1/1.8", 25fps, 2.8-12mm and 8-32mm motorized lens
Supplement Light: Embedded 2 LED lights(integrated white light and IR)
Smart Recognition:
vehicle type recognition(Car/Van/Bus/Truck/Others)
vehicle color recognition(red、yellow、green、blue、purple、brown、white、grey、black)
vehicle brand recognition
Power Supply: 12 to 24 VDC/PoE (802.3af)
Protect level: IP67, IK10
Working Temperature: -30°C to 70°C (-22°F to 158°F)

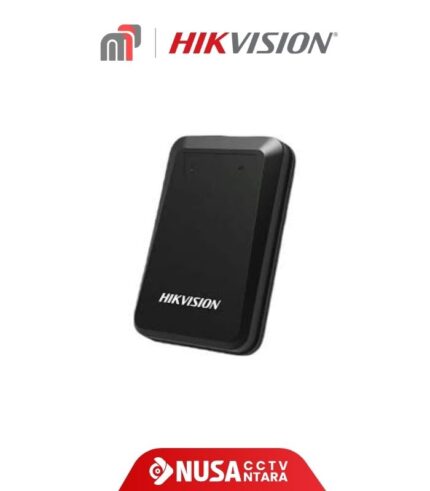

Transmitting frequency: 79GHz
Working mode:Anti-fall Radar
Beam width: Vertical 10°, Horizontal 38°, relay output
Trigger distance: 0.3 to 6m (adjustable)
Response Time: 50ms
Detection target: Vehicle
Power Supply: 9 to 12 VDC
Weight: 350g
Working Temperature: -40°C to 85°C

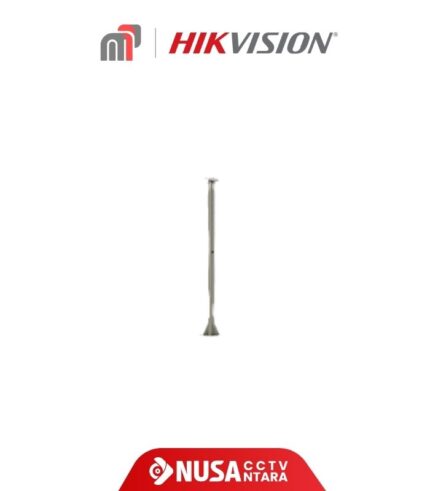

Pole for LPR camera unit TCGX06
Color: Platinum brown
Length: 1.5m
Diameter: 60mm
Material: Carbon Steel Q235

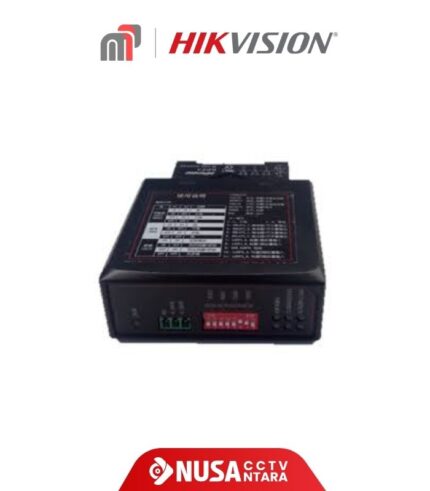

Including 2 inputs of inductive loops
Recognizes vehicles of more than two wheels
Fastest Response Time: 3.5ms
Output Port: 2 relay output, VDRM 70 V, max. current 30 mA
Working Temperature: -30 °C to 70 °C (-31 °F to 167 °F)
Power Supply: DS-TMG022(110V): 88 to 132 VAC, 50 to 60 Hz; DS-TMG022(220V): 176 to 264 VAC, 50 to 60 Hz
Dimensions: 105 × 88 × 40 mm
Weight: 0.8kg
